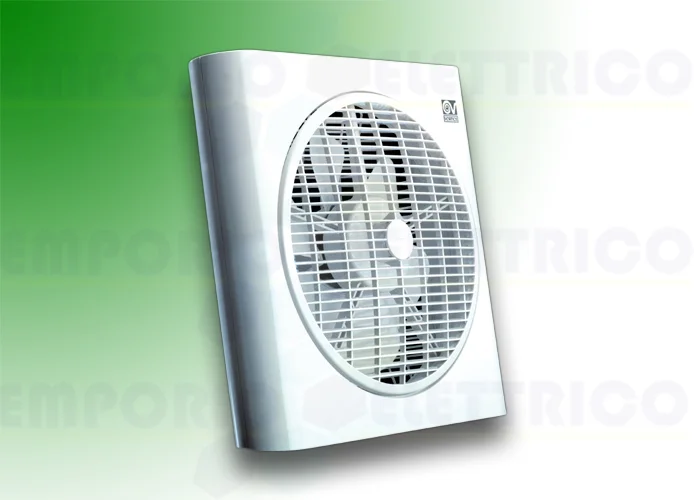

VORTICE - MULTIDIREKTIONALER BODENVENTILATOR MIT LANGSAM ROTIERENDEN, FARBE: WEIß

• CASING MOULDED FROM PLASTIC RESIN ABLE TO WITHSTAND AGING INDUCED BY EXPOSURE TO SUNLIGHT (UV-RESISTANT), AND FORMULATED WITH AN ANTISTATIC COMPOUND TO PREVENT ACCUMULATION OF DUST.
• NOMINAL DIAMETER: 300 MM
• PROTECTIVE GRILLES MADE OF ABS IMPACT- AND UV-RESISTANT THERMOPLASTIC RESIN: FRONT GRILLE ROTATABLE, REAR GRILLE FIXED.
• FAN ROTOR MOULDED FROM ABS THERMOPLASTIC RESIN.
• 3 SPEED ASYNCHRONOUS MOTOR WITH SHAFT TURNING IN SELF-ALIGNING AND SELF-LUBRICATING BUSHINGS; THERMAL OVERLOAD PROTECTION.
• AIR FLOW 1300 M3/H
• FRONT GRILLE ROTATION MECHANISM INCORPORATING SYNCHRONOUS MOTOR WITH RUBBER GEAR HOUSED IN THE FRONT PART OF THE CASING.
• PROVIDED WITH TWO ROTARY SWITCHES:
O THE FIRST SWITCH, WHICH HAS 4 POSITIONS (OFF-1-2-3), IS USED TO TURN THE FAN ON AND OFF AND SELECT THE THREE SPEEDS OF THE ROTOR
O THE SECOND SWITCH, WHICH HAS 2 POSITIONS (ON AND OFF), IS USED TO CONTROL THE ROTATION OF THE FRONT GRILLE BY TURNING THE SYNCHRONOUS DRIVE MOTOR ON OR OFF.
• PVC POWER CORD, LENGTH 1.80 M, WITH 10A MOULDED PLUG CONFORMING TO THE REQUIREMENTS OF THE EU MACHINERY DIRECTIVE.
• IMQ SAFETY AND PERFORMANCE CERTIFICATIONS
• RECIPIENT OF THE COMPASSO D’ORO AWARD FOR PRODUCT DESIGN

ARIANTE 30 60790

ABSORBED CURRENT MAX (A): 0,17
ABSORBED POWER MAX (W): 35
FREQUENCY (HZ): 50
INSULATION CLASS: II°
MAX. ABSORBED POWER AT MAX SPEED (W): 35
VOLTAGE (V): 220-240
WEIGHT (KG): 3,5
AIRFLOW SPEED AT MAX SPEED (M/S): 2,03
DELIVERY MAX (M³/H): 1306
DELIVERY MAX (M³/MIN): 21,77
GIRI_MINUTO: 1075
RPM: 1075
SERVICE VALUE (M³/MIN)/W: 0,622
SOUND POWER LEVEL LW [DB(A)]: 54,5

SIZE A (MM): 440
SIZE B (MM): 162
SIZE C (MM): 90
SIZE D (MM): 175
SIZE E (MM): 440
SIZE F (MM): Ø 350

ARIANTE Serie

vortice multidirektionaler Bodenventilator langsam rotierenden ariante 30 60790

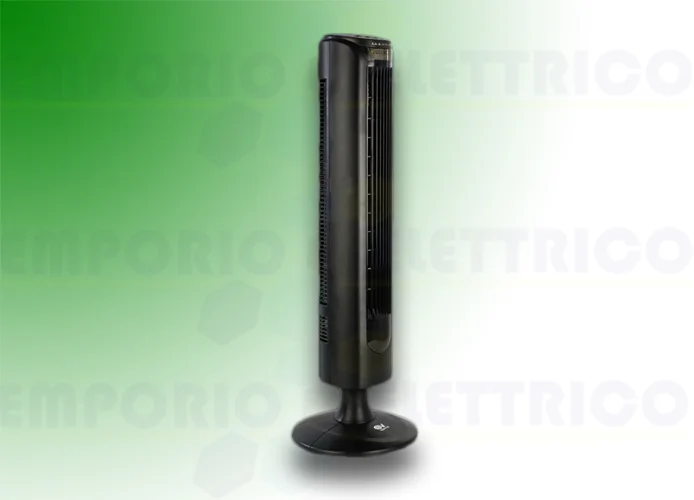

vortice Säulenventilator ariante tower super 63015
