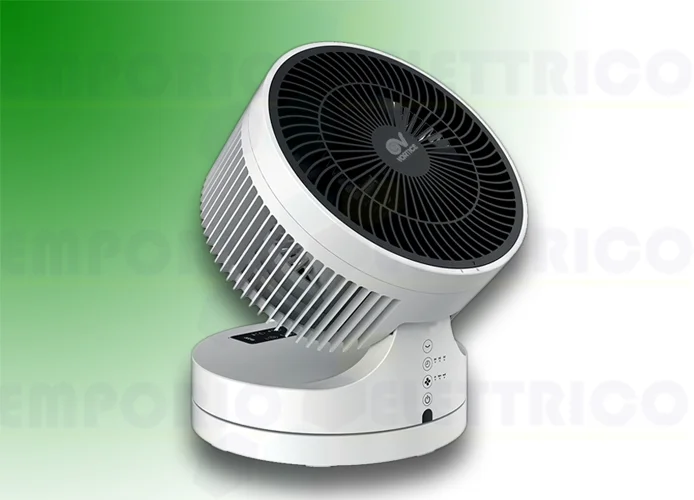

VORTICE - OSZILLIENDER TISCHVENTILATOR, GEKENNZEICHNET VON DER VENTILATOR ANTRIEBSEINHEIT MIT SCHARNIER AUF DEM UNTERSTÜTZEN, DEN LUFTFLUSS IN DER GEWÜNSCHTEN RICHTUNG ZU ADRIEREN UND DIE NICHT VERWENDETE RAUMFAHRT ZU VERMINDERN.
HANDSENDER INTEGRIERT

- SHOCKPROOF PLASTIC CASING (ABS).
- FRONT GRILLE IN PP RESISTANT TO AGGRESSIVE AGENTS.
- TOUCH CONTROLS IN THE FRONT PORTION OF THE PRODUCT.
- AXIAL IMPELLER DIRECTLY COUPLED TO A 3-SPEED ELECTRIC MOTOR, DESIGNED TO ENSURE SAFE AND RELIABLE OPERATION.
- IR REMOTE CONTROL, ON THE BOTTOM PART, FOR:
- POWER ON/OFF
- SPEED SETTING
- ACTIVATION OF THE AUTOMATIC ROTATION ON THE HORIZONTAL PLANE (60°) OF THE FAN UNIT
- THE SETTING OF THE TIMER FOR THE PROGRAMMED SHUTDOWN, AT 60' INTERVALS, UP TO A MAXIMUM OF 7 H.
- POSSIBILITY OF MANUALLY ORIENTING THE FAN MOTOR UNIT ON THE VERTICAL PLANE.
- POWER SUPPLY CABLE WITH A USEFUL LENGTH OF ABOUT 170 CM, INCLUDING SHUKO PLUG.

NORDIK VENT 60445

FREQUENCY(HZ): 50-60
PROTECTION DEGREE: IPX0
INSULATION: 2ND CLASS
WEIGHT (KG): 2.37
MAX. POWER CONSUMPTION (W): 42.2
RATED POWER (W): 45
ABSORPTION: 45W
RANGE m3/h: 82
WEIGHT (KG): 2.37
VOLTAGE (V): 220-240
SEASONAL ELECTRICITY CONSUMPTION (KWH/A): 13.76
MAX FLOW RATE (M³/H): 828
MAX FLOW RATE (M³/MIN): 13.81
STAND-BY POWER (W): 0.23
SOUND POWER LW [DB(A)]: 59.48
OPERATING VALUES (M³/MIN)/W: 0.33
AIR SPEED AT MAX VEL. (M/S): 5.92

SIZE A (MM): Ø 250
SIZE B (MM): Ø 250
SIZE C (MM): 350
SIZE D (MM): 131
SIZE E (MM): 198

vortice oszilliender Tischventilator nordik vent 60445
