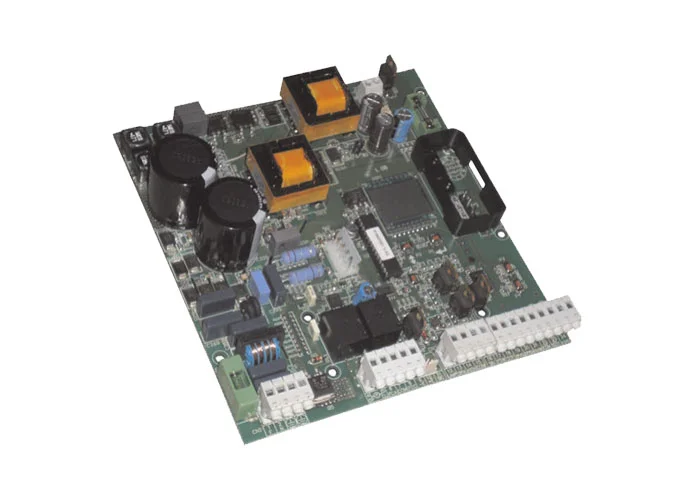

GENIUS - ELECTRONIC BOARD FOR BARRIERS 24V DC
INTEGRATED IN THE RAINBOW 724 C
MAX OPENING TIME AND CLOSING 60 SECONDS
PAUSE TIME ADJUSTABLE IN 7 LIVELS FROM 5 SECONDS UP TO 4 MINUTES
ENCODER SENSITIVITY ADJUSTABLE IN 4 LEVELS

LYNX 08 6020561

24V DC

TECHNICAL DETAILS:
- SUPPLY VOLTAGE AND FREQUENCY 230 VAC 50 HZ / 115 VAC 60 HZ
- ABSORBED POWER (W) 5
- MAX. INRUSH POWER (W) 480
- MAX. LOAD ACCESSORIES (MA) 500
- OPERATING TEMPERATURE (°C) -20 +55
- PROTECTION FUSES 2 REPLACEABLE FUSES + 4 SELF-RESETTING FUSES
- OPERATING LOGICS: AUTOMATIC (A)/AUTOMATIC STEP-BY-STEP (AP)/MANUAL (E)/MANUAL STEP-BY-STEP (EP)/MANUAL (D)
- TERMINAL BOARD INPUTS: MAINS SUPPLY (230/115 VAC)/FCA AND FCC LIMIT SWITCHES/PHOTOCELLS/STOP/OPEN-CLOSE/OPEN-CLOSE/SAFETY TEST/BATTERIES
- QUICK CONNECTOR MOLEX 3-PIN PLUG FOR ENCODER/ 3-PIN PLUG FOR RECEIVER MODULE
- TERMINAL BOARD OUTPUTS: MOTOR POWER SUPPLY 24VDC/BEACON 24VDC/ INDICATOR LAMP 24VDC MAX. 5W/ROD LIGHTS 24VDC/SYNCHRONISATION OF OPPOSING BARRIERS/ ACCESSORIES POWER SUPPLY/BATTERY CHARGER
- BOARD DIMENSIONS (MM) 168 X 146

genius elektronische Karte lynx 08 24v 6020561

genius elektronische Karte lynx 08 24v 6020561
