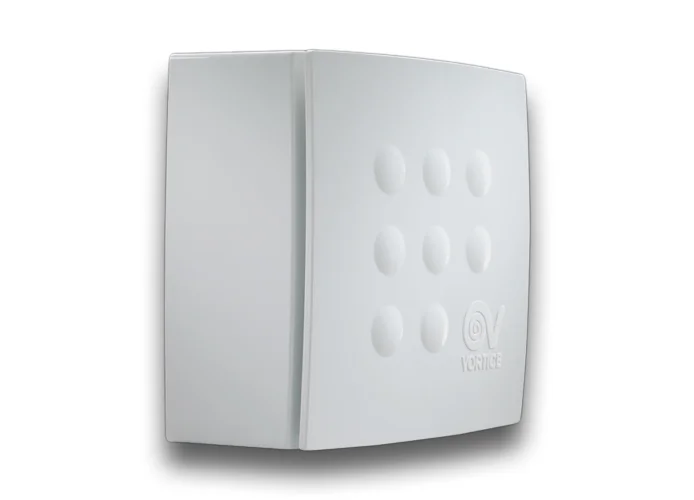

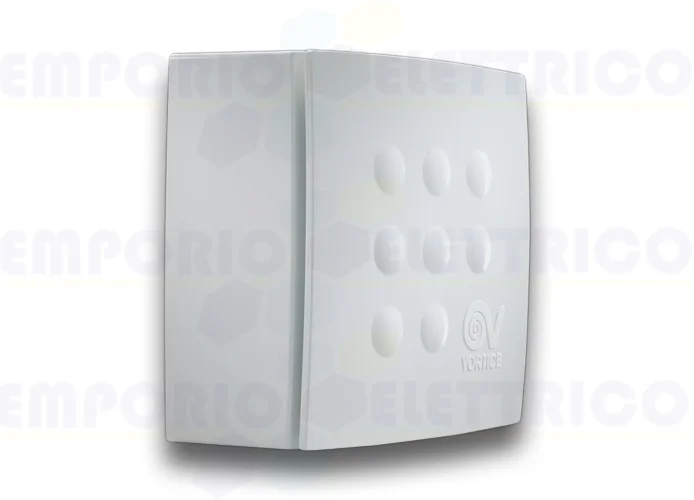

VORTICE - SCHACHTVENTILATOR ZUM ANSCHLUSS AN VERTIKAL-LÜFTUNGSSCHÄCHTE, ABZUGSROHRE ODER AN LÄNGERE ROHRLEITUNGEN, SERIE VORT QUADRO-SERIE

• MATERIAL: WHITE ABS PLASTIC
• CAPACITOR START 2-SPEED INDUCTION MOTOR COUPLED TO A FORWARD BLADED CENTRIFUGAL IMPELLER. EQUIPPED WITH THERMAL OVERLOAD CUTOUT AND SELF-LUBRICATING BUSHINGS.
• NOMINAL DIAMETER 100 MM.
• MINIMUM AIR FLOW 65 M3/H
MAXIMUM AIR FLOW: 90 M3/H
• IMQ SAFETY AND IMQ PERFORMANCE CERTIFICATIONS.
• VORTICE SPEED CONTROLLER.

VORT QUADRO Serie MICRO 100  11936

ABSORBED POWER 1ST SPEED (W)20
FREQUENCY (HZ)50
INSULATION CLASSII°
IPX4
MAX AMBIENT TEMPERATURE FOR CONTINUOUS OPERATION (°C)50
MAX. ABSORBED CURRENT AT MAX. SPEED (A)0,13
MAX. ABSORBED CURRENT AT MIN. SPEED (A)0,10
MAX. ABSORBED POWER AT MAX SPEED (W)28
NOMINAL DIAMETER (MM)100
Ø DISCHARGE HOLE (MM)92,5/97
VOLTAGE (V)220-240
WEIGHT (KG)1,80
DELIVERY 1ST SPEED (L/S)18
DELIVERY 1ST SPEED (M³/H)65
MAX DELIVERY AT MAX SPEED (L/S)25
MAX DELIVERY AT MAX SPEED (M³/H)90
PRESSURE - 1ST SPEED (MMH20)16
PRESSURE - 1ST SPEED (PA)157
PRESSURE MAX - MAX SPEED (MMH20)22
PRESSURE MAX - MAX SPEED (PA)216
RPM MAX1600
RPM MIN1180
SOUND PRESSURE IN FREE AIR CONDITIONS [DB(A)] 3M32,3
SOUND PRESSURE LEVEL LP [DB (A)] 3M - MAX SPEED39,2
SOUND PRESSURE LEVEL LP [DB (A)] 3M - MIN SPEED32,3

SIZE A (MM)239
SIZE B (MM)195
SIZE C (MM)197
SIZE D (MM)85
SIZE E (MM)74
SIZE F (MM)64
SIZE G (MM)60
SIZE H (MM)97
SIZE I (MM)100
SIZE L (MM)20
SIZE T (MM)117
